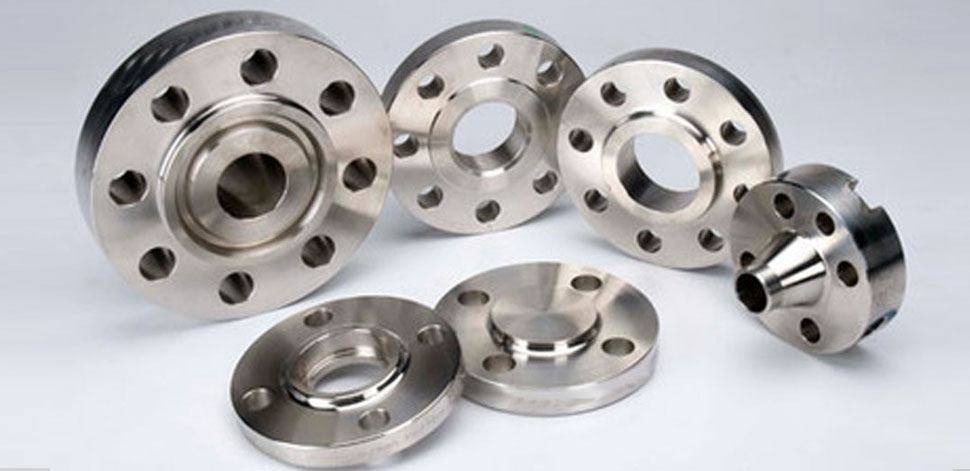

SS 316 / 316L Flanges are specialized pipe fittings used in various industrial applications. The SS 316/316L Flanges are known for their superior corrosion resistance and high strength, making them ideal for harsh environments. They are commonly used in chemical processing, oil and gas, petrochemicals, and food processing. These flanges come in different sizes, types, and pressure ratings to suit different piping requirements.

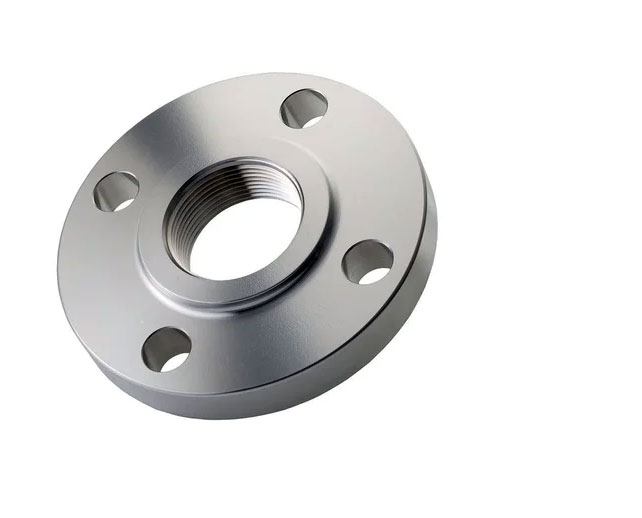

SS 316L Slip on Flanges, 316L SS Plate Flange, Stainless Steel 316 Flanges Manufacturers, 316 Stainless Steel Threaded Flanges, 316 SS BLRF Flange, SS 316 SWRF Flange, SS 316L Weld Neck Flanges, Stainless Steel 316L Flanges Stockist in India.
What are SS 316 / 316L Flanges?
SS 316/316L Flanges connect pipes, valves, and other equipment in a piping system. Made from stainless steel alloys, these flanges offer superior corrosion resistance & strength compared to standard carbon steel or copper alloy options. Furthermore, SS 316 Socket Weld Flanges have an attractive finish & better weldability and formability than many other materials. Some common SS 316 / 316L Flanges include slip-on, weld neck, blind, socket weld, and threaded flanges.
What are the features of SS 316 / 316L Flanges?
Features of SS 316/316L Flanges include:
• Higher corrosion resistance, higher tensile strength, and low cost.
• High formability.
• Excellent weldability.
• Great dimensional stability.
• Aesthetically pleasing appearance.
What are the advantages of SS 316 / 316L Flanges?
The advantages of using SS 316/316L Flanges include their ability to handle extreme temperatures, pressures, and corrosive environments. Furthermore, the Stainless steel 316L WNRF Flange is highly resistant to cracking and crevice corrosion, making them ideal for various industries.
What are the applications of SS 316 / 316L Flanges?
Applications of SS 316/316L Flanges include construction, food processing, power plants, chemical processing, marine environments, petrochemical refining, and aerospace applications. These 316 Stainless Steel Threaded Flanges can also be used in the oil & gas industry, water treatments, pharmaceuticals, and other general engineering applications.
Palgotta Steel Pvt Ltd offers a wide range of SS 316 / 316L Flanges manufactured using high-grade steel and is durable in quality. Our 316 Stainless Steel Threaded Flanges have superior strength to resist corrosion, assure leak-proof connections, and increase safety. We offer a range of sizes with precise specifications per the customer’s requirement. All our SS 316 / 316L Flanges are designed to meet international standards and have been tested for optimum performance. They are ideal for high-pressure applications, chemical processing, oil and gas refineries, etc. Our flanges come with superior quality assurance from the factory to ensure you always get the best product. Please do not hesitate to contact us for any queries about our SS 316 / 316L Flanges. We look forward to helping you with all your needs.
Stainless Steel 316 Flanges Specification
- Standards: ASTM A182 / ASME SA182
- Dimensions: ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
- Size: 1/2″ (15 NB) to 48″ (1200NB)
- Class: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
- Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
- Flange Face Types: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
- Specialized manufacturer of: Rtj Flanges, Pn16 Flanges, DIN 2566 pn16, DIN 2566 en 1092 1, DIN 2566 pn10, Lap Joint Flanges, Loose Flange, Orifice Flange, AS 4087 Water Flanges, Weld Neck Flanges, Flanges, Slip-On Flanges, Socketweld Flange, Plate Flanges, Large Diameter Flanges, Sorf Flange, Blind Flanges, Table Flange
Equivalent Material of Stainless Steel 316 Flanges
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Specialized in Stainless Steel 316 Flanges
- SS 316 Tongue and Groove Flanges in India
- Stainless Steel 316L SORTJ Flanges
- SS 316 BSP Threaded Flanges
- 316L Stainless Steel Custom Flanges

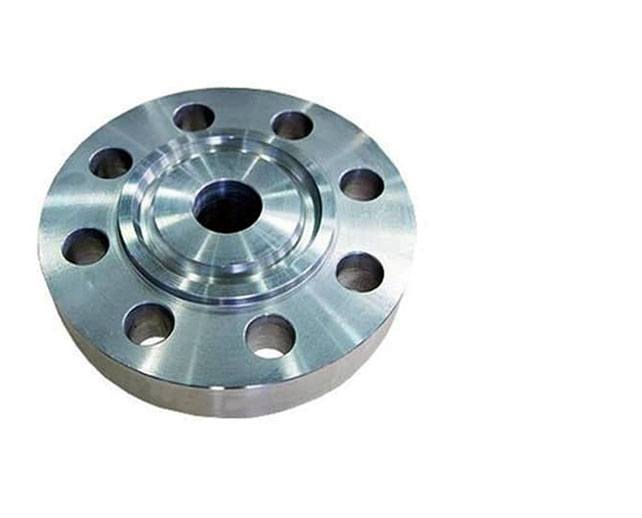

- 316 Stainless Steel Ring Type Joint Flanges
- SS 316L Flanges Stockist in Mumbai
- Austenitic Stainless Steel 316 Flanges
- Stainless Steel 316 Reducing Flange
- Stainless Steel 316L Flanges Stockholder
- SS 316L Flanges at Best Price In India
- Stainless Steel 316 Industrial Flanges
- Stainless Steel 316L Spectacle Blind Flanges
- SS 316L WNRF Flanges
- SS 316 ASME B16.36 Orifice Flange
- Stainless Steel 316 Flanges Pressure Rating
- Stainless Steel 316 NPT Threaded Flanges
- Stainless Steel 316 RTJ Flanges Supplier
- Stainless Steel 316 Slip On Flat Face Flange Stocks
- 316 Stainless Steel Flanges Manufacturer
- Stainless Steel 316L Nipoflange
- 316 SS Flangeolet
- Stainless Steel 316L Flange
- 316 Stainless Steel SOFF Flanges
- SS 1.4401 Flanges
- AISI 316 Flanges
- Stainless Steel UNS S31603 Flange
- SS 316L Paddle Blank and Spacer
- 316L SS Weld Neck Raised Face Flanges
- 316 Stainless Steel Threaded Flanges
- Stainless Steel 316 Threaded Flanges Exporters
- 316 Stainless Steel Flat Face Blind Flange
- SS 316 Flanges Wholesale in Mumbai
- Stainless Steel 316L Spacer Ring Flanges
- SUS 316 Screwed Flanges
- Stainless Steel 316L BLFF Flanges
- Stainless Steel 316L SORF Flanges
- 316 Stainless Steel SWRF Flanges
- ASME SA182 F316L Stainless Steel Pipe Flanges
- Stainless Steel 316 Flanges Supplier in India
- SS 1.4404 Large Tongue Flange
- Stainless Steel 316 Orifice Flanges
- Stainless Steel 316 Large Diameter Flange
- 316 Stainless Steel Flanges Stockist In India
- Stainless Steel 316 WNFF Flanges
- ASTM A182 F316 SS Forged Flange
- 316 Stainless Steel SWFF Flanges
- Stainless Steel 316 Loose Plate Flange
- SS S31600 Slip On Plate Flange
- Stainless Steel 316 Paddle Blind Flange
- Stainless Steel 316 Pipe Flange Spacer Ring
Chemical Properties Of 316 Stainless Steel Flange
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
SS 316 Flanges Mechanical Properties
| Grades | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 / 316L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 316 Flanges Dimensions
| NPS (in.) |
316 Stainless Steel Flange Dimensions | ||||
|---|---|---|---|---|---|
| Dia. of Flange (in.) |
No. of Bolts |
Dia. of Bolts (in.) |
Dia. of Bolt Holes (in.) |
Bolt Circle (in.) |
|
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
SS 316L Flanges Weight Chart
| Pipe Normal Diameter (inch) | Outer diameter Flange | Thickness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2″ | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2″ | 0.4 | 0.9 |
| 3/4″ | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2″ | 0.7 | 1.5 |
| 1″ | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2″ | 0.8 | 1.8 |
| 1-1/4″ | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2″ | 1.2 | 2.6 |
| 1-1/2″ | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2″ | 1.5 | 3.3 |
| 2″ | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8″ | 2.3 | 5.1 |
| 2-1/2″ | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8″ | 3.7 | 8.1 |
| 3″ | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8″ | 4.1 | 9 |
| 3-1/2″ | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8″ | 5.1 | 11.2 |
| 4″ | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8″ | 5.9 | 13 |
| 5″ | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4″ | 7 | 15.4 |
| 6″ | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4″ | 8.4 | 18.5 |
| 8″ | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4″ | 13 | 28.6 |
| 10″ | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8″ | 18 | 39.5 |
| 12″ | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8″ | 29 | 64 |
| 14″ | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1″ | 39 | 86 |
| 16″ | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1″ | 47 | 103 |
| 18″ | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8″ | 57 | 126 |
| 20″ | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8″ | 76 | 167 |
| 24″ | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4″ | 97 | 214 |
UNS S31600 Flange Pressure Rating Chart
| ASME | Pressure Temperature Ratings For Stainless Steel 316 Flanges | ||||||
| Temperature °F | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
316 SS Flanges Price List

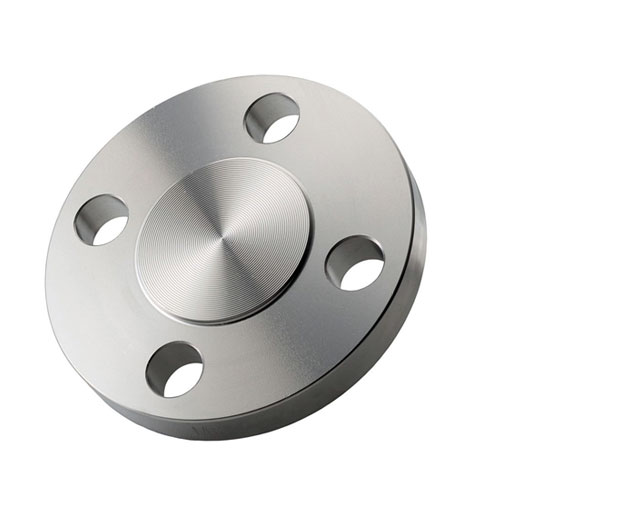

- 316 stainless steel raised face blind flange

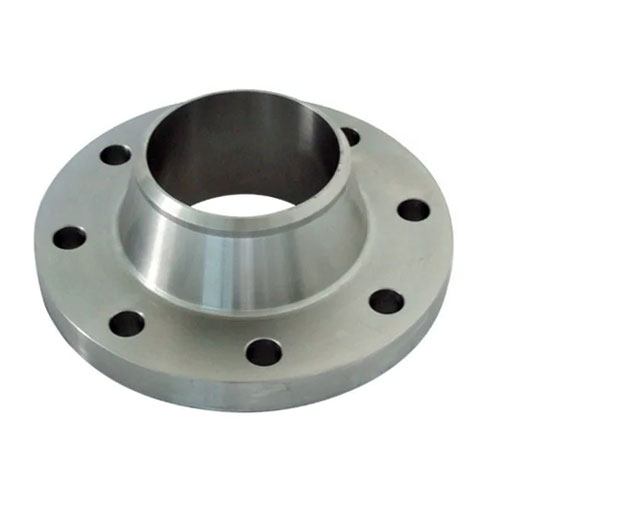

FOB Price: US$ 10.00 – 130.00 / Piece - sus 316 ss weld neck pipe flange price
FOB Price: US$ 1.00 – 18.00 / Piece - astm a182 316l stainless steel flanges

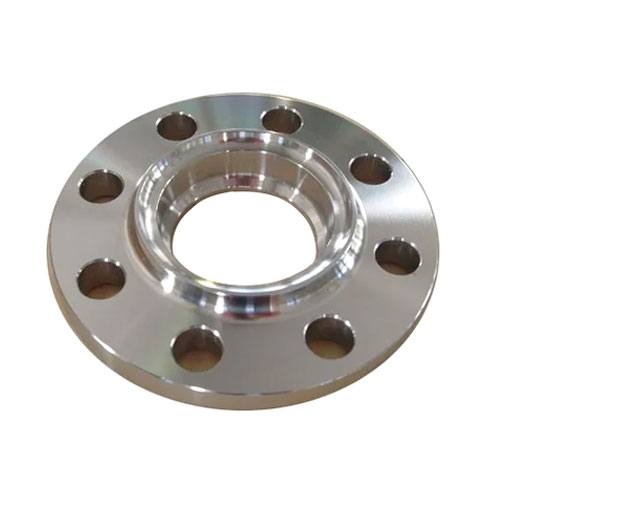

FOB Price: US$ 2.40 – 4.50 / Piece - 316l stainless steel socket wld raised face flanges (swrf)
FOB Price: US$ 13.00 – 675.00 / Piece - 316 stainless steel ansi 150lbs bsp threaded flanges
FOB Price: US$ 1.00 – 100.00 / Piece - ansi b16.5 ss 316l threaded / screwed flanges
FOB Price: US$ 1.56 – 76.00 / Piece - aisi 316 flange cost
FOB Price: US$ 0.4 – 34.00 / Piece - top quality 316l stainless steel flanges with factory price
FOB Price: US$ 1.60 – 2.50 / Piece - asme b16.5 316 stainless steel rf flange
FOB Price: US$ 5.00 – 175.00 / Piece - ss 316 plate flanges price per ton
FOB Price: US$ 3.00 – 29.00 / Piece - cheap price 316 stainless steel Flanges
FOB Price: US$ 1.50 – 97.00 / Piece - 316l stainless steel blrtj flange price list
FOB Price: US$ 2.50 – 54.00 / Piece
316 Stainless Steel Forged Threaded Flange | Supplier of SS 316 Flanges | 316L Stainless Steel Flanges Suppliers | Stainless Steel 316 Plate Flanges Stockists | SS 316L Flanges Latest Price | SS 316L Flange Exporters | ASTM A182 F316 Flanges Manufacturers in India

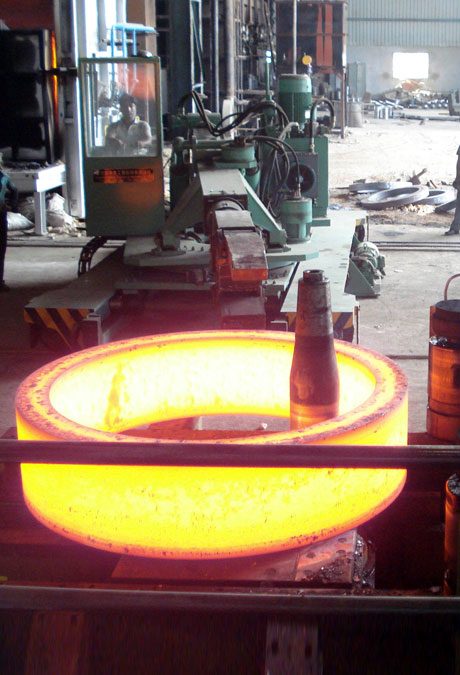

SS 316L Flange Value Added Services / Processing
